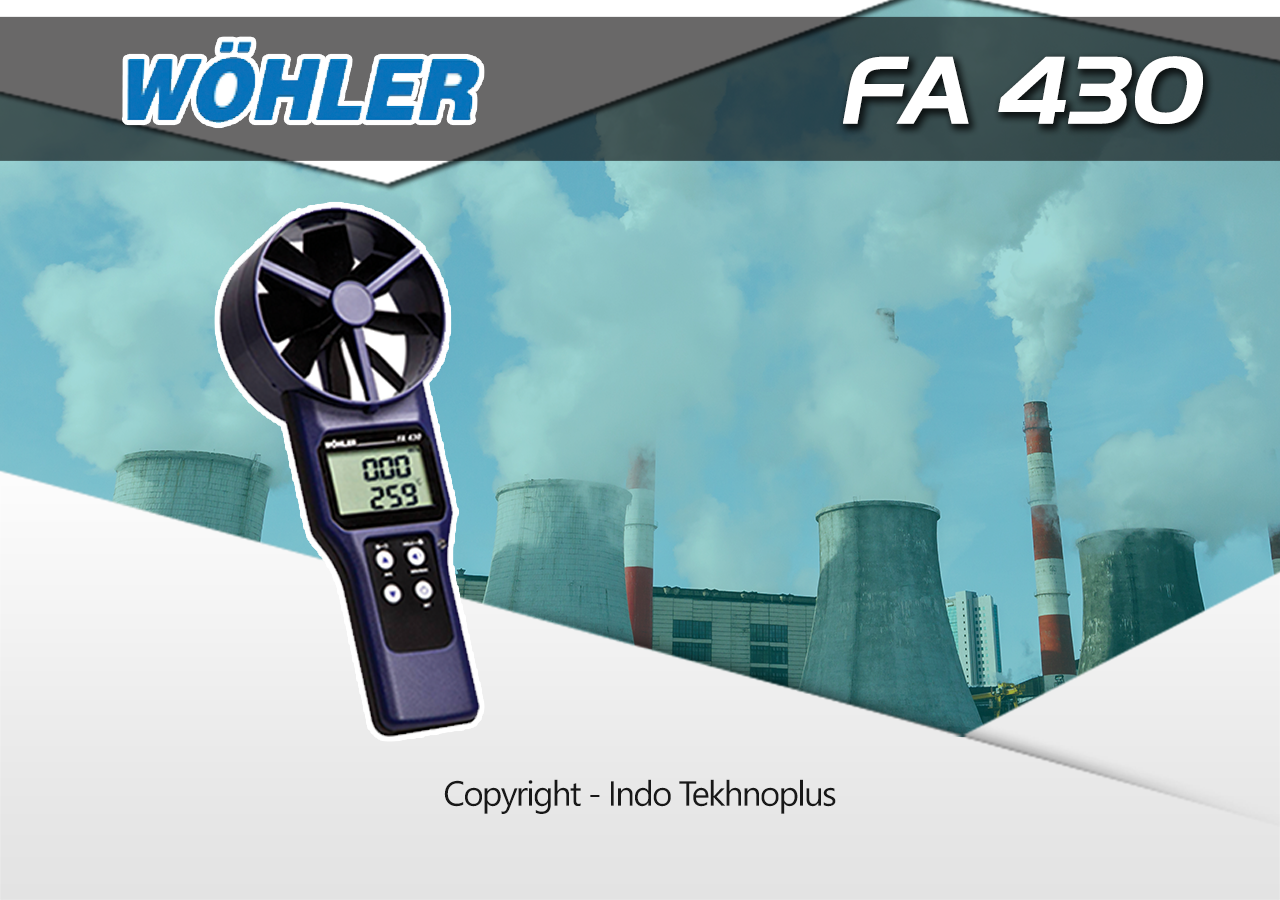

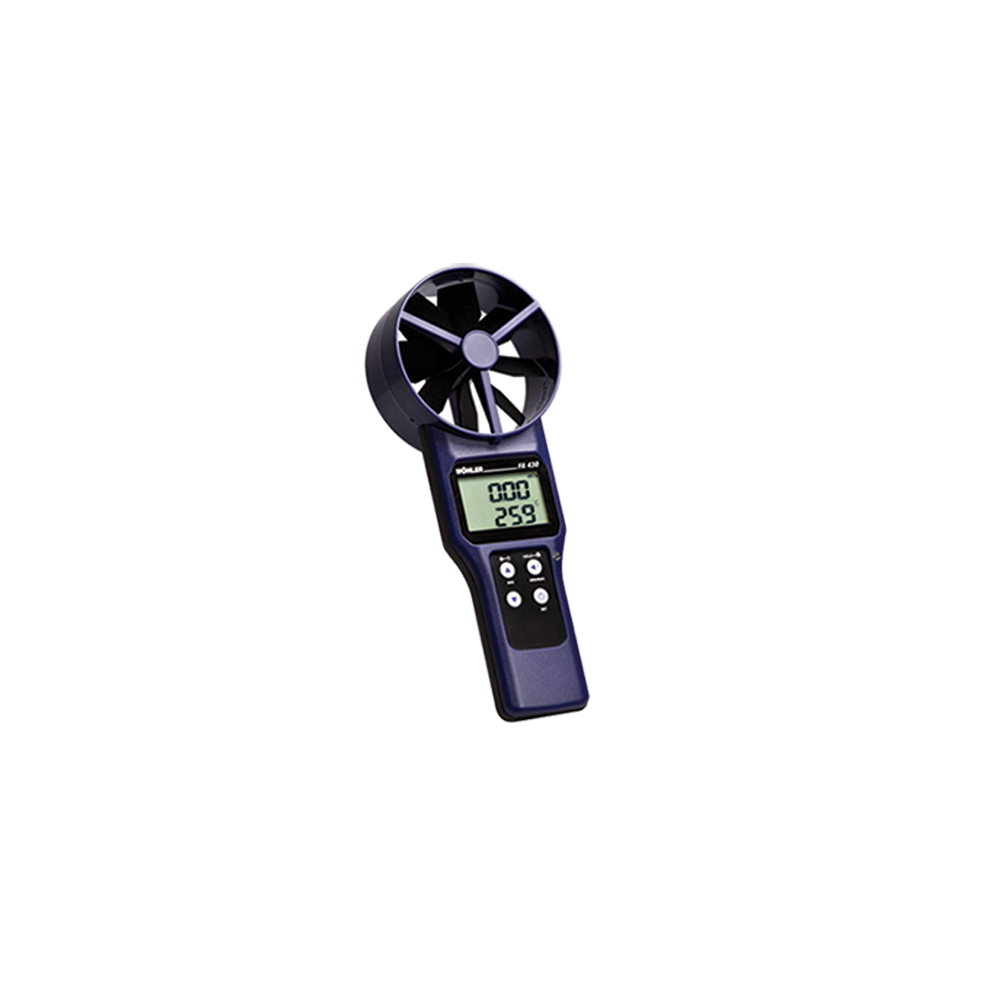

Fan Anemometer

Wohler FA 430

Alat pengukur kecepatan angin di udara dan gas CO2.
Fan Anemometer Fan Anemometer

Tags: , ,

Spesifikasi :

Range:
  > Flow velocity : 0.5 – 30 m/s
  > Volume flow : up to 99.999 m3/h
  > Temperature : -20.0 °C – 60 °C (-4 °F – 140 °F)
  > Relative humidity : 0.1% – 99.9%
  > Dew point : -20.0 °C – 59.9 °C (-4 °F – 139.82 °F)
  > CO2 : 0 – 9999 ppm
Accuracy:
  > Flow velocity : ± 1.5% of reading + 0.3 m / s less than 20 m / s
        ± 3% of reading + 0.3 m / s at about 20 m / s
  > Volume flow : 0.2% of measurement reading
  > Temperature : 0.6 °C / 33.08 °F
  > Rel. humidity : ±3% (at 25 °C / 77 °F) otherwise ±5%
  > CO2 : ± 30 ppm ±5% of reading (0 – 5000 ppm)
Resolution :
  > Flow velocity : 0.1 m/s
  > Volume flow : 0.1 (0 – 9999.9) or 1 (10,000 – 99,999)
  > Temperature : 0.1 °C/F
  > Rel. humidity : 0.10%
  > Dew point : 0.1 °C/F
  > CO2 : 1 ppm
Others :
  > CO2 warm-up time : 30 seconds
  > Battery life : > 24 hours
  > Instrument : 269 x 106 x 51 mm
  > Power supply : 4 AAA micro batteries
  > Operating conditions : 0 – 50 °C (32 – 122 °F), < 80% RH
  > Storage conditions : -10 – 50 °C (14 – 122 °F), < 90% RH
  > Fan diameter and weight : Ø 10 cm; 270 g
  > EHIS Compatible : Yes





Environtmental and Health Integration System (EHIS)

Supply with :
Fan Anemometer FA-430,measuring funnel set, rectangular funnel, round funnel, battery, Kartu Garansi, Manual Bahasa Indonesia,  EHIS (Environtmental and Health Integration System), dan Hard Carrying Case
