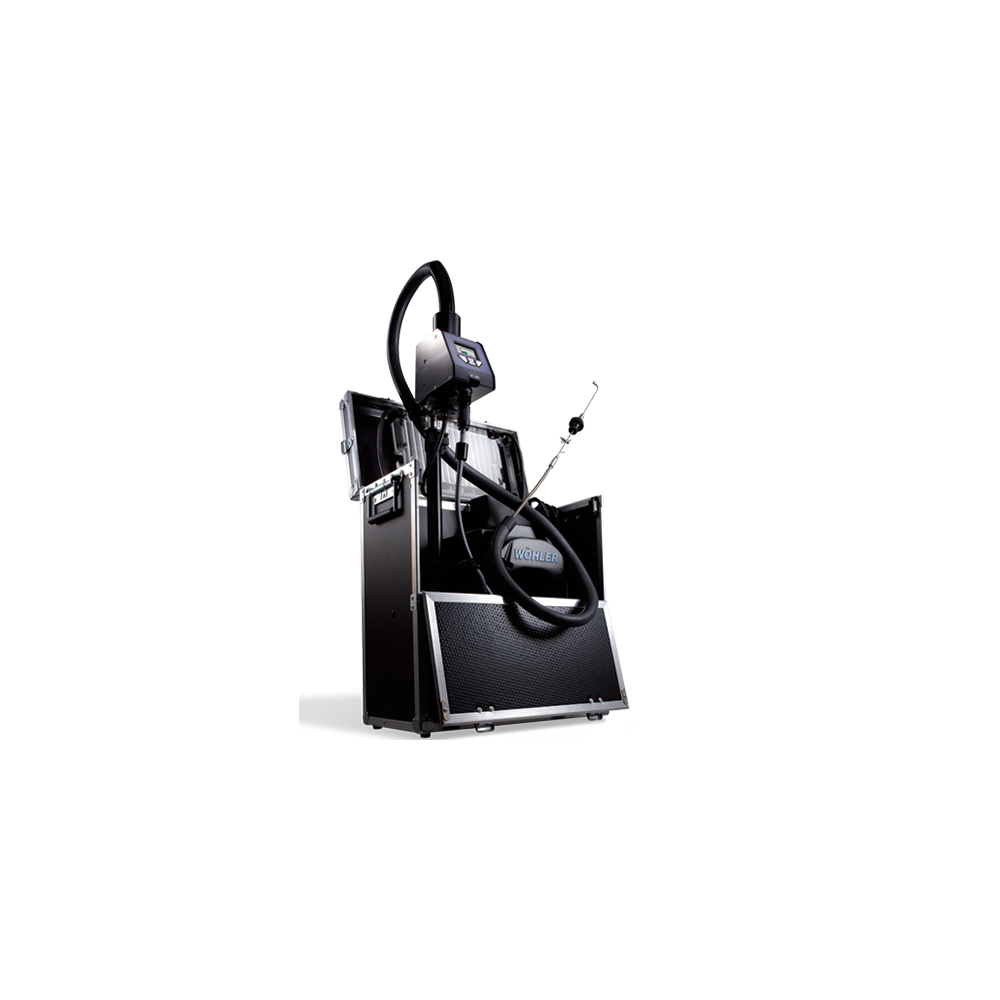

Suspended Particulate Analyzer

Wohler SM-500

Alat untuk mengukur konsentrasi debu pada udara yang dihasilkan dari pembakaran (emisi)
Suspended Particulate Analyzer Suspended Particulate Analyzer

Tags: , ,

Fitur :

›    Onsite measurement and verification - Simple as that adjust the display unit to your working level measure, take result. All aspects of the instrument are user friendly designed. The wohler accomplishes everything for you,
›    All In One: O2, CO, Temperature and draft measurement inclusive - the basic instrument kit comes with a fully featured, integrated flue gas analyserfar O2, CO, Stack temperatur and draft to give a complete analysis and verification onsite
›    High Precision Digital Mass Scale - with the wohler SM 500 suspended particulate analyser you can verify for the first time onsite mass concentration limits as low as 20 mg/m3 according to german    environmental protection standards (1. BlmSchV). The results of measurements and verifications can be displayed or printed on the portable wohler TD 100 Thermal Fast Printer
›    Real Time Graphic Function Display - The Simple Menu is intuitive by design. The technician friendly 4 button key pad allows real time graphic function display and user selectable readings. The briliant full color LED display is even visible in a dark environment
›    Data Transfer - all measurement data and online readings can be transferred to a computer by USB connection. The wohler SM 500 computer software package allows extensive data analysis and display

Spesifikasi :
Suspended Paticulate Matter Concentration / Filter load (mStF) in 15 min:
  - Reading   : Filter load in mg at 75˚C filter temperature
  - Semsor technology   : Real time digital mass scale
  - Range   : 0,0 to 45,0 mg (equals 0,0 mg/m3 to 1.000,0 mg/m3 in flue gas)
  - Accuracy   : ± 0,3 mg
Sample Rate (VoIS):
  - Reading :   : Standard liter per minute (slpm)
  - sensor technology   : Differential pressure
  - Range   : 4,5 Li.N. /min and 3,0 Li.n./min
  - Accuracy   : ± 0.3 % according to VDI 4206 Blatt 1
Oxygen (O2) concentration in flue gas:
  - Reading   : % of flue gas volume (dry conditions)
  - Sensor technology   : electrochemical sensor
  - Range   : 0,0 ti 21,0%
  - Accuracy   : ±0,3 % according to VDI 4206 Blatt 1
Carbone monoxide (COv) in flue gas:
    Reading:   : ppm of flue gas volume (dry conditions)
    Sensor technology   : electrochemical sensor
    Range   : 0 to 100.000 ppm, resolution 1 ppm (<32.000 ppm), 10 ppm
    Accuracy   : ± 100 ppm (< 1.000 ppm), 10% of reading according to VDI 4206 Blatt 1
Draft (PD)
  - Reading   : Pascal
  - Sensor Technology   : Semiconductor
  - Range   : 0,00 to ± 110,00 hPa, resolution 1 Pa
  - Accuracy   : 3 Pa (<100 Pa), 3 % of Reading
Flue gas temperature (TA):
  - Reading   : ˚C
  - Sensor Technology   : Thermocouple (NiCr-Ni)
  - Range   : -20,0 ˚C to 800,0 ˚C, resolution 0,1 ˚C
  - accuracy   : according to VDI 4206 Blatt 1
Calculated Values
  - mSt   : Total suspended particulate matter mass concentration in flue gas refered to adjustable
          oxygen reference value in mg/m3
  - Vol   : Smaple volume in SL
  - O2   : O2 concentration in % given as 15 min average value
  - COv   : CO concentration in ppm given as 15 min average value
  - COn   : CO air free concentration in ppm referred to adjustable oxygen reference value



Power Supply   : 230 V, 50 Hz, Max. 1.200 W
Storage Temperature   : -20 ˚C + 50 ˚C
Work Temperature   : +5˚C to 40 ˚C
Weight   : Approx, 15 kg
Dimensions   : 480 x 240 x 550 mm



Analyser
Wohler SM 500 Suspended Particulate Analyser With high precision digital mass scale unit, heated probe and hose assembly, flue gas analysis unit including O2/CO/temperature and draft, probe and hose assembly for flue gas analysis, auxiliary probe heater, additionally 450 mm, probe, pack with 10 filter catridges, cleaning tools, PC-Software



Portable Environment Device System



Environtmental and Health Integration System (EHIS)



Supply With :



kesling kit sanitarian kit alat kesehatan kit keslingkit water test kit
